Single Mode Simplex SMF Fiber Optic Patch Cable 3.0mm PVC Jacket

Brand Name : OEM

Model Number : LSH/APC-LSH/APC-1F-SMF-3.0-P-3M

Certification : ISO9001

Place of Origin : CHINA

MOQ : Support sample order

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000,000 connectors/month

Delivery Time : 3-7 work days

Packaging Details : Individual packaging with Ziplock Bag

Fiber Type : SMF

Jacket Material : PVC

Fiber Count : 1 Fibers

Polishing : APC

Jacket Color : Yellow

Connector Style : LSH

Warranty : 1 year

Boot color : Green boot

Contact Now

Single Mode Simplex SMF Fiber Optic Patch Cable 3.0mm PVC Jacket

LSH/APC-LSH/APC Fiber Jumper Single Mode Simplex 3.0mm PVC Jacket

Description

The LSH connector patchcords are offered for MM or SM applications with PC and APC polishing method. LSH integrated protective cap made from zinc alloy protects ferrule from dust and rules out any laser light emissions. The LSH connector is compatible with E2000 connector standards. High power version available.

Single mode VS Multi mode

	Type	Core/Cladding(um)	Fast Ethernet 100Mb	Gigabit GbE	10Gigabit 10GbE	40Gigabit 40GbE	100Gigabit 100GbE	40G SWDM4	100G SWDM4
Multimode	OM1	62.5/125	2km	275m	33m	-	-	-	-
	OM2	50/125	2km	550m	82m	-	-	-	-
	OM3		2km	800m	300m	100m	100m	240m	75m
	OM4		2km	1100m	400m	150m	150m	350m	100m
	OM5		2km	1100m	400m	150m	150m	440m	150m
Singlemode	OS1/OS2	9/125	40km	100km	40km	40km	40km	-	-

Optical and mechanical performance of LSH fiber jumper

Item	Singel mode	Multi mode
Insertion loss	≤0.3 dB	≤0.3 dB
Return loss	≥50 dB(UPC); ≥60 dB(APC)	≥30 dB
Ceramic ferrule spec	125.5um concentricity deviations:＜1um	127um concentricity deviations:＜3um
Insert-pull test	500 times ＜0.3dB
Operation temperature	-40℃～+85℃
Suitable fiber	PC/APC(9/125um)	PC(50/125um,62.5/125um

Features

◆ CATV

◆ Active dvice termination

◆ Telecommunication networks

◆ Metro

◆ Local Area Networks(LANs)

◆ Data Processing networks

◆ Test Equipment

◆ Premise installations.

◆ Wide Area Networks(WANs)

Applications

◆ Telecom

◆ LAN, WAN

◆ CATV

◆ Sensor Systems

◆ Measuring Technique

◆ Utilities, Railways

Standard package

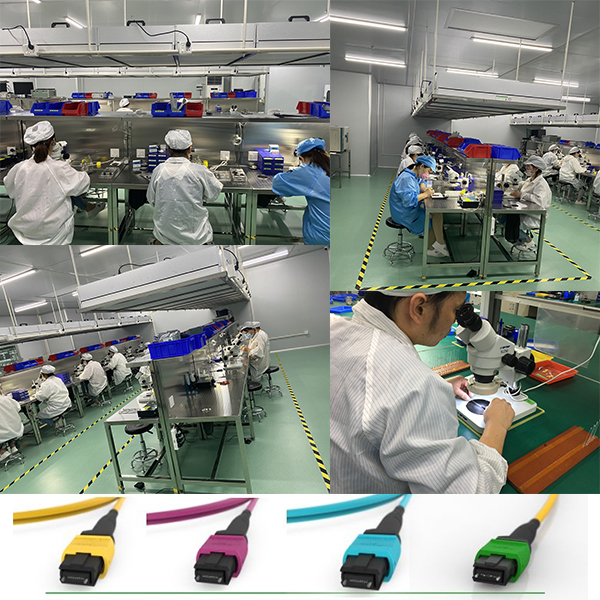

Factory Show

Single Mode Simplex SMF Fiber Optic Patch Cable 3.0mm PVC Jacket
