MPO/MTP multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized MPO/MTP fan out, spanning MDA, HDA and EDA zones.
Features
◆ Polarity options are TIA style A, B, or C (Method B is standard)
◆ Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
◆ Customized for length, staggering, connector type, breakout style, fiber count, and labeling
◆ Available in OS1/2, OM2, OM3 and OM4
◆ Available in FC,LC, SC, ST, MU, and MTP
Application
◆ Data Center Cabling
◆ FTTH
◆ FTTA
◆ Cassettes And Rack mount
◆ Telecommunication Network
◆ Data processing networks
◆ Test equipment;
◆ Premise installation;
◆ Wide Area Networks
Specification
1. Operating & Storage Temperature
| | Parameters | Min | Max | Unit |
| 1 | Operating Temperature | -40 | 70 | °C |
| 2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
| Item | Parameters |
| MPO/MTP® Connector | SM(1310nm/1550nm) | MM(850nm) |
| Standard | Low Loss | Standard | Low Loss |
| Insertion Loss | Typical | 0.5dB | 0.2dB | 0.5dB | 0.2dB |
| Maximum | 0.7dB | 0.35dB | 0.7dB | 0.35dB |
| Return Loss | >=60dB for APC | -- |
| >=40dB for PC | >=20dB for PC |
| Male/Female | Male: with Pin; Female: without Pin |
| LC/FC/SC Connector |
| Item | SM | MM |
| | 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) |
| PC | <=0.2 | >=50 | <=0.3 | >=25 |
| APC | <=0.3 | >=60 | N/A | N/A |
3. Geometry Parameters
| MT |
| Measurement | Pass/Fail Limits |
| Parameters | Min | Max |
| | | |
| Radius of Curvature | Long Axel | 2000mm | ∞ |
| Short Axel | 50mm | ∞ |
| Angle | Long Axel | -0.2° | 0.2° |
| Short Axel | APC | 7.8° | 8.2° |
| PC | -0.2° | 0.2° |
| Fiber Height | 1000nm | 3000nm |
| Different Fiber Height | N/A | 500nm |
| Adjacent Fiber Height | N/A | 300nm |
| Ferrule Length | 7.9mm | N/A |
| FC/LC/SC UPC |
| Item | Pass/Fail |
| Parameters | Min | Max |
| FC ROC | 10.00mm | 25.00mm |
| LC ROC | 7.00mm | 25.00mm |
| Fiber Height | -100.00nm | 50.00nm |
| Apex Offset | 0.00μm | 50.00μm |
| FC/SC/LC APC |
| Item | Pass/Fail |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |

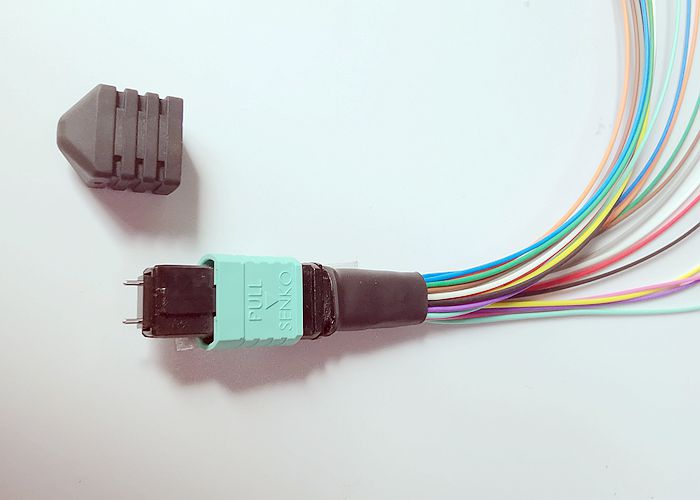

4. Connector Detail
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
ORC Production Show
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
