9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC

Brand Name : OEM

Model Number : SC/UPC-SC/UPC-2F-SM-2.0-L-5M

Certification : ISO9001

Place of Origin : CHINA

MOQ : Support sample order

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000,000 connectors/month

Delivery Time : 3-7 work days

Packaging Details : Individual packaging with Ziplock Bag

Fiber Type : 9/125um G652D

Sheath Material : LSZH/PVC

Fiber Number : 2 Fibers

Polishing : UPC

Sheath Color : Yellow

Connector Type : SC/UPC-SC/UPC

Warranty : 1 year

SC Boot Color : Blue and white

Contact Now

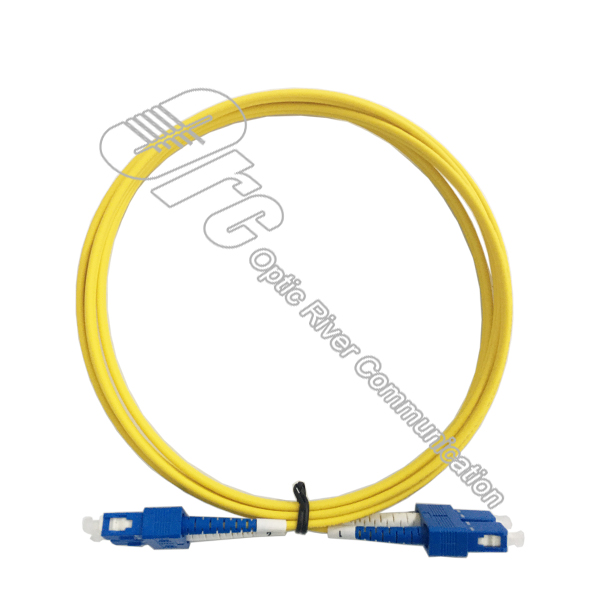

9/125um UPC Polishing Fiber Optic Patch Cable Single Mode SC To SC

9/125um fiber optic patch cables single mode SC to SC

Definition of 9/125μm DX Patch cord

This fiber optic cable with customized length is terminated with SC connectors on both ends. It is a singlemode fiber (9 micron core) designed to transmit data across long distances at high speeds. The cord is duplex (two fibers) which means it permits synchronous communication between devices. The cladding diameter is 125 microns.

Fiber optical patchcord parameters

Characteristics	Unit	Value/Performance			Comments
		SM		MM
		APC	PC
Basic
Insertion Loss(IL)	dB	≤0.3			IEC61300-3-4
Insertion Loss(RL)	dB	SPC≥45 UPC≥50	≥60	≥23	IEC61300-3-6
Endurance	dB	△IL≤0.2			IEC61300-2-2
Operation Temperature	℃	-20 to +70
Speration Temperature	℃	-40 to +70
Ferrule end-face geometry
Radius of curvature(R)	mm	7-25	5-12	NA	Telcordia GR326(4.4.5)
Apex offset	um	≤50		NA	Telcordia GR326(4.4.5)
Fiber protrusion	nm	≤50	≤100	NA	Telcordia GR326(4.4.5)
Fiber under cut	nm	≤125@R=7-10	≤100	NA	Telcordia GR326(4.4.5). For PC, under cut≤-0.02R³+1.3R²-31R+325 when R=10-25mm
Mechanical
Drop	dB	△IL≤0.2			IEC61300-2-12, 1.5m, 5 drops, no damage
Vibration	dB	△IL≤0.2			IEC61300-2-1, 10-55Hz, 0.75mm amplitude, 0.5hrs/axis
Flex	dB	△IL≤0.2			Telcordia GR326(4.4.3.2), 0.6kg, ±90°, 100cycles, for 2mm or larger cable
Twist	dB	△IL≤0.2			Telcordia GR326(4.4.3.3), 1.35kg load, ±2.5 turns, 10cycles, for 2mm or larger cable
Pull proof	dB	△IL≤0.2			Telcordia GR326(4.4.3.4), 2.3kg at 90°, 6.8kg at 0°, for 2mm or larger cable
Coupling strength	dB	△IL≤0.2			IEC61300-2-6, 4.2kg, 2min
Static bending	dB	△IL≤0.2			IEC794-1-2, 60mm diameter 10 turns
Crushing	dB	△IL≤0.2			IEC794-1-2, 102kg for 2mm or larger cable, 10.2kg for 900um cable
Environmental
Cold	dB	△IL≤0.2			IEC61300-2-17, -20℃, 96 hrs
Dry heat	dB	△IL≤0.2			IEC61300-2-18, 70℃, 96 hrs
Damp heat	dB	△IL≤0.2			IEC61300-2-19, 40℃, 95% RH, 96 hrs
Transmission
Characteristics	Unit	G652 SM			G655 SM	Std. 50um	62.5um	OM2	OM3
Max. Attenuation	dB/km(nm)	0.4/0.3(1310/1550)			0.3(1550)	2.8(850)	3.0(850)	2.8(850)	2.8(850)
Min. Bandwidth	MHz km(nm)	-			-	500/500(850/1300)	200/200(850/1300)	750(850)	2000(850)
Dispersion coefficient	ps/nm² km	≤3.0(1310nm)			2.6-6.0(1550nm)	-	-	-	-

Features of SM G652D Duplex Fiber Optical Cable Assembly

◆ Single-fiber connector type available in LC, SC with APC or UPC polishing type
◆ Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
◆ Pull proof jacket
◆ Cable length available in 1m, 2m, 3m, etc

◆ Factory terminated & tested with guaranteed quality

◆ Jacket material: 0.9mm/2.0mm/3.0mm cable LSZH, OFNR, OFNP

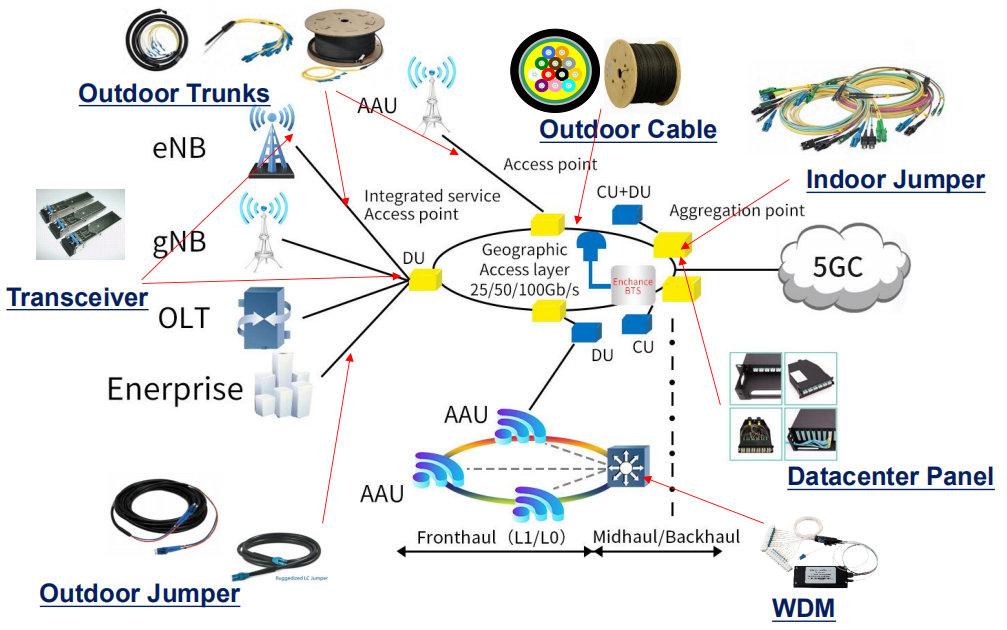

Applications of MM duplex patchcord

◆ Telecommunication networks
◆ Data processing networks

◆ Links between electronic equipment and fiber patch panels

◆ Premise installation

9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC

Drawing and cable length tolerance

Length Tolerance
L<1M	±0.08M
1M≤L<20M	±0.10M
L≥20M	±1%M
