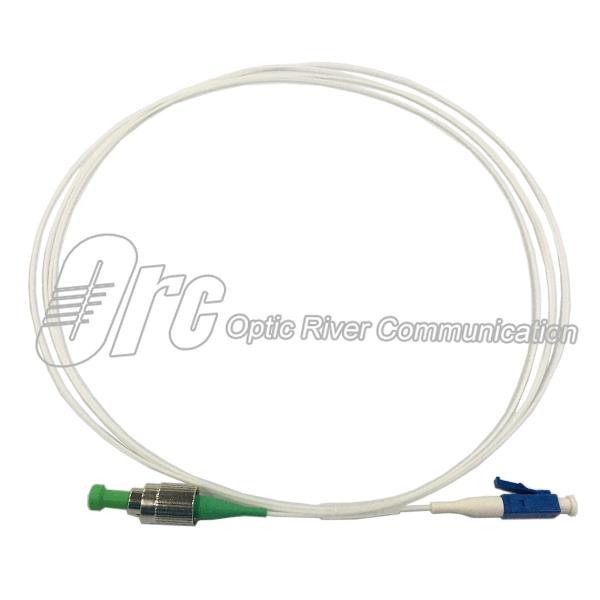

Simplex 900um Fiber Optical Patch Cord G652D FC-LC With White OFNR Jacket

Brand Name : OEM

Model Number : FC/APC-LC/UPC-1F-0.9-R-1.5M

Certification : ISO9001

Place of Origin : CHINA

MOQ : Support sample order

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000,000 connectors/month

Delivery Time : 3-7 work days

Packaging Details : Individual packaging with Ziplock Bag

Fiber Type : G652D

Jacket Material : OFNR

Fiber Count : 1 Fiber

Polishing : UPC/APC

Jacket Color : White

Connector Style : FC-LC

Warranty : 1 year

Boot color : Green and white

Contact Now

Simplex fiber optical patch cord 900um G652D FC-LC white jacket OFNR

Description

G652D FC-LC fiber patch cable is ready for deployment in any 9/125 network. 9/125 networks support longer cable distances with lower loss. This single mode, duplex fiber cable is comprised of corning optical fiber with ceramic connectors. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. It has a white OFNR jacket.

Product information

Connector type	FC-LC	Polish type	UPC/APC
Fiber number	1	Fiber mode	G652D
Wavelength	1310nm	Connector material	Metal housing and plastic boot
Insertion loss	<=0.3dB	Max transmission distance	2000M
Fiber grade	Bend insensitive	Data rate	10GB @ 1310nm
Cable jacket	OFNR	Cable diameter	0.9mm zipcord
Polarity	A(Tx)-B(Rx)	Operating temperature	-20-+60℃

Features

◆ High concentricity 2.5mm ceramic ferrule for SC, FC, ST; 1.25mm ceramic ferrule for LC and MU

◆ Ceramic ferrules provide precise alignment

◆ Ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications

◆ Connectors utilize a UPC polish

◆ Endface inspection, IL/RL testing and 3D interferometer testing

Applications

◆ Used to connect patch panels and/or network devices that utilize duplex ST-ST style connectors and require OM2 50/125 multimode cabling

◆ Optical communication system

◆ Optical fiber CATV

◆ FTTX+LAN

◆ Telecommunication

Drawing and cable length tolerance

Length Tolerance
L<1M	±0.08M
1M≤L<20M	±0.10M
L≥20M	±1%M

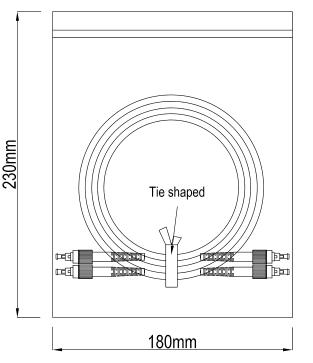

Standard package

Simplex 900um Fiber Optical Patch Cord G652D FC-LC With White OFNR Jacket
