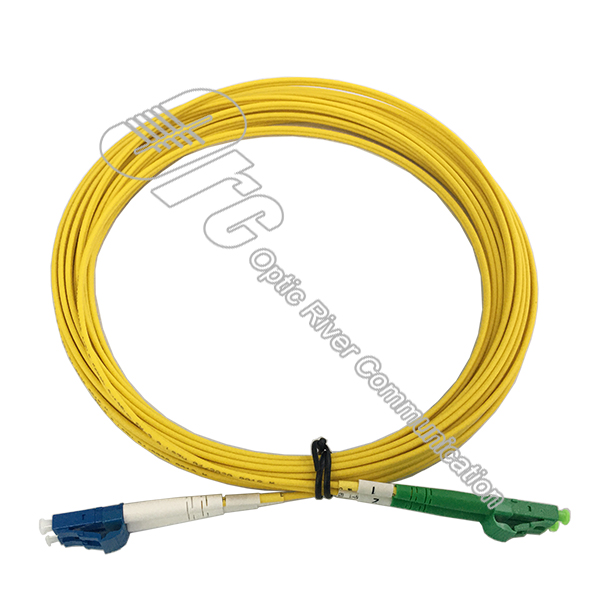

Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC

Product Categories
Optic River Communication Ltd
Contact Now

Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC

  • 1
  • 2
  • 3

Brand Name : OEM

Model Number : LC/APC-LC/UPC-2F-SM-2.0-L-5M

Certification : ISO9001

Place of Origin : CHINA

MOQ : Support sample order

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000,000 connectors/month

Delivery Time : 3-7 work days

Packaging Details : Individual packaging with Ziplock Bag

Fiber Type : G.657A2

Jacket Material : LSZH

Fiber Count : 2 Fibers

Polishing : APC/UPC

Jacket Color : Yellow

Connector Style : LC/APC-LC/UPC

Warranty : 1 year

Boot color : White and green

Contact Now

LC/APC-LC/UPC fiber optical patchcord G657A2 single mode duplex

OFNP VS. OFNR

OFNP cables have fire-resistance and low smoke production characteristics. This is the highest fire rating fiber cable and no other cable types can be used as substitutes. So these cables are mostly installed in plenum areas. Whereas, the fiber-resistance and low smoke of OFNR cables are not good as OFNP. OFNP plenum cables can be used as substitutes for OFNR cables. Through OFNR vs. OFNP, it is worth noticing that OFNR fiber optic cable cannot be used in plenum areas to replace OFNP cables, however, the latter can be used in the riser areas. Both OFNP and OFNR can be used in general purpose areas.

Product information

Connector type LC to LC Polish type APC
Fiber number 1 Fiber mode G.657A2
Wavelength 1310nm/1550nm Connector material Plastic housing and boot
Insertion loss ≤0.3dB Ferrule diameter 1.25mm
Fiber grade Bend insensitive Return loss ≥60dB
Cable jacket LSZH Cable diameter  2.0mm riser cable
Polarity A(Tx)-B(Rx) Operating temperature -20-+60℃

Features

◆ 100% optically inspected and tested for insertion loss
◆ ROHS and Reach compliant
◆ Pull proof jacket
◆ Available in custom length and colors

Applications

◆ Building interconnections(campus LAN)
◆ Trunking lines direct to telecommunications closet
◆ Links between electronic equipment and fiber patch panels
◆ Fiber patch panels within communications closet
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC

Drawing and cable length tolerance

Length Tolerance
L<1M ±0.08M
1M≤L<20M ±0.10M
L≥20M ±1%M
